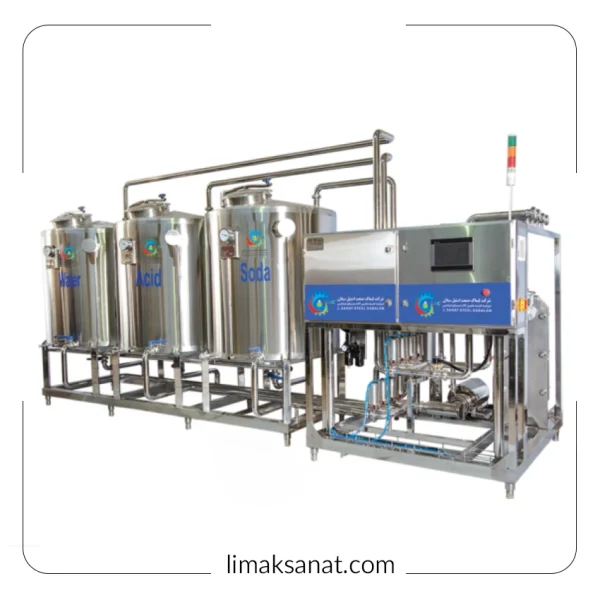

CIP stands for Cleaning In Place, which refers to an automatic CIP unit designed for cleaning equipment and tanks in various industries, especially in the food industry (dairy, beverages, fruit juices) and pharmaceuticals. Depending on the equipment and tank sizes, CIP packages are used for the effective cleaning of pipes, tanks, and process machinery.

The control type of this device is PLC-based.

Its heat exchanger is a plate type (Alfa Laval), made of stainless steel ALSI316, with direct steam injection capability.

The main components and parts of the device include:

Chemical tank (AISI316)
Water tank (AISI304)
Circulation pump
Inverter dosing system
Flow control system
Automatic valves
Frame
Connecting pipes
Fittings
Manual and automatic valves

The control and command panel of this device is made of stainless steel, and it is equipped with an alarm system, automatic programming for temperature, time, and concentration control.

The standard capacity/sizes of this device range from 6000 to 20,000 liters per hour.

Advantages of this device include:

Fully automatic and designed for implementing specialized, controllable wash programs.
Low consumption of water, energy, and chemicals.
Water consumption savings.
Optimal washing in a short time.
Standard control systems to reduce costs.
Various CIP cleaning programs.
Easy maintenance.
Easy operation.

Overall operation of the device:

This device automatically and programmatically performs different cleaning stages. These stages include washing with water, washing with detergents, rinsing, and disinfection. All these stages are carried out using pumps, automatic valves, sensors, and a central control system (PLC).
